Metrology Products

TRIGA BORE (3 point internal mesuring system)

Triga-Bore heads have a large measuring range and are supplied with fixed anvils eliminating operator error. 22 heads and 10 ring gauges cover 6-200mm.Unique system allows two measuring handles to cover 6-200mm range Ergonomically designed handle offers single handed operation with unique adjustable stop for short range ansducers.High dergree of accuracy can be achieved without need for special skills.Customer can specify type of output for SPC applications Ideally suited to simple or integrated measurement applications.Can be used for special applications such as threads O ring grooves, spherical forms etc.

TRUE BORE (3 point internal mesuring system)

True-Bore heads have a large measuring range and are supplied with fixed anvils eliminating operator error. 22 heads and 10 ring gauges cover 6-200mm.Unique system allows two measuring handles to cover 6-200mm range.Ergonomically designed handle offers single handed operation.High dergree of accuracy can be achieved without need for special skills.Customer can specify type of output.Ideally suited to simple or integrated measurement applications.Can be used for special applications such as threads O ring grooves, spherical forms etc.

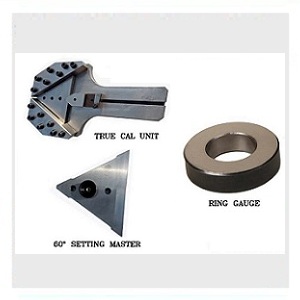

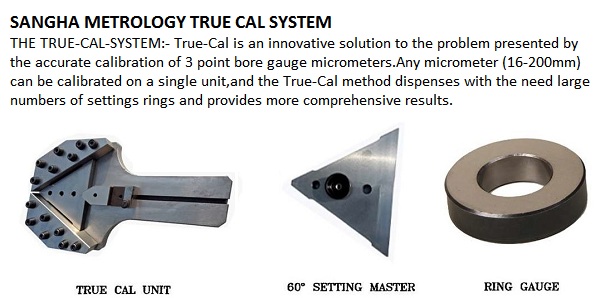

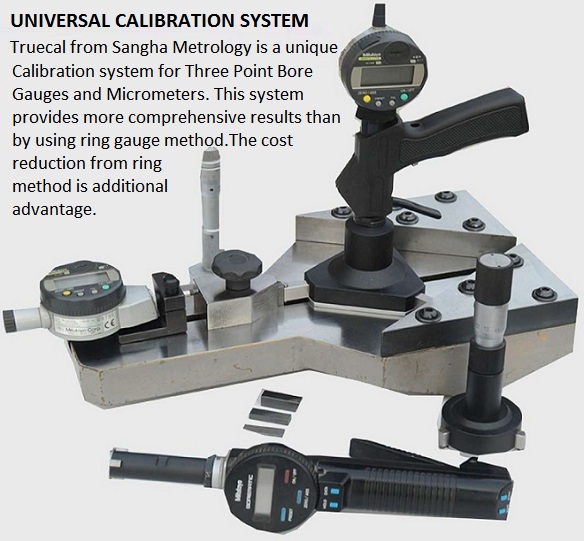

TRUE CAL (A new and cost saving approach to calibrating 3 point bore gauges)

THE TRUE-CAL SYSTEM: True-Cal is an innovation solution to the problems presented by the accurate calibration of 3 point bore gauge micrometers. Any micrometer (from 16-200mm) can be calibrated on a single unit, and the True-Cal method dispenses with the need for large numbers of settings rings and provides more comprehensive results.
OPERATIONS:The True-Cal system relies on the use of slip gauges with an optional electronic transducer output. Operation is quick and simple, and requires no specialist skills.
LINEARITY CHECK:Convensional ring gauge methods do not give comprehensive indications of linearity. True-Cal allows the gauge to be checked at any point on the range o the gauge being inspected.
TRACEABILITY:True-Cal measurement are traceable through the slip gauges used and the certification of the angular setting block.
COST SAVINGS: True-Cal simplifies gauge management by dispensing with the need for costly ring gauges and their periodic calibration. This reduces costs in both the long and short term.

BOREMATIC RETROFITS

Sangha Metrology is a well established Manufacturer & Supplier of 3 Point Measuring System for Internal Diameters.Mitutoyo Borematic System is composed of 3 point measuring heads in similar designs to Sangha Metrology. Standard Mititoyo Borematic has a range of 6-110mm. All heads above 20mm dia. Have interchangeable anvils.Sangha Metrologys standard heads 110-200mm can be directly used with Borematic handle. A range of standard and non standard anvils for the standard Borematic heads can be supplied offering capabilities to measure internal O Rings, Splines, Recesses, Spherical Diameters and Threads.Standard and special heads can be supplied to Retrofit customers existing system or can be sourced a new.

SPECIAL APPLICATIONS

Bore Gauging measurement requiring customised measuring heads. Heads to measure 'O' ring grooves, splines, recesses and thread gauging can be supplied. Special applications are available for TRIGA-BORE and TRUE-BORE. Sangha Metrology can supply special application heads and anvils to suit other borematic handles. Heads to extend the borematic range from 110-200mm are also available TRIGA-BORE and TRUE-BORE handles and heads can also be supplied to interchange with other bore gauging systems.

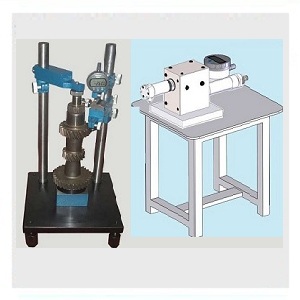

PLATE CHECKER

PLATE-CHECKER is now a new product, specially designed to measure plate or sheet thickness. It offers simplified measurement of difficult to measure components requiring differential measurement using two gauges. Two Mitutoyo Digimatic Gauges are used to differentially output the thickness of the plate with resolution of 0.001mm. Simple version is shown with hand operated cable lift method. Units to suit specific applications for size and levels of automation.

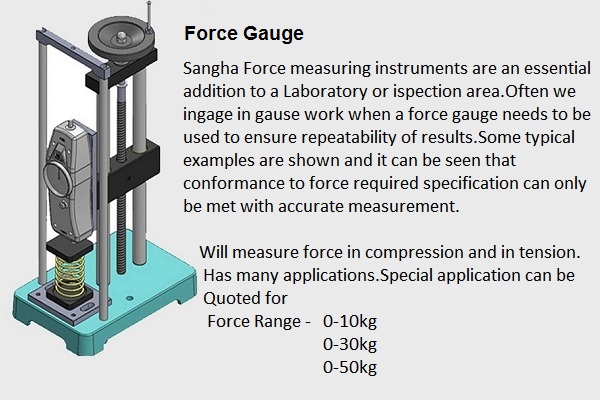

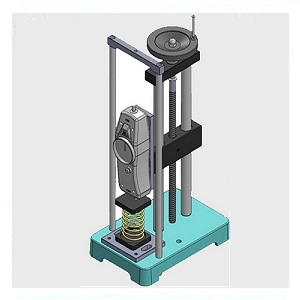

Force Gauge Stand

Sangha metrology manufacturer Force Gauge Stands for the customer for measuring the force of objects.

Ring Gauge

Ring gauge for setting,Sangha Metrology provide ring gauge 8 mm upto 200mm with Sangha bore gauge head to setting bore dia 6mm to 200mm. 24 heads required only twelve ring gauge to measure 6nn to 200mm complete range.

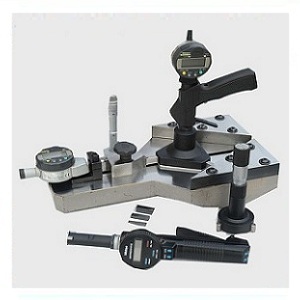

3 Point Bore Gauge Calibration System

3 Point Bore Gauge Calibration System is an innovative solution to the problems presented by the accurate calibration of 3 Point Bore Gauge and micrometer. Any micrometer can be calibrated on a single unit and the true cal methoud dispences with the need for large number of calibrated ring gauge.True cal also provides more comprehensive results.System can be used with the calibrated slips or linear transducers with suitable range.Range of transducer must be more then 1.5x head range.

Investment Casting

Investment cast or lost wax process for casting precision parts facility is available. We can supply almost any material including parts in Brass, Cast Iron, Stainless Steel And Mild Steel on sub-contract. Aluminum parts are also available. Investment cast or lost wax process for casting precision parts facility is available on sub contract. We can supply almost any material including parts as given bellow :-
1) Brass
2) Cast iron
3) Stainless steel
4) Mild steel
5) Aluminium parts are also available
Buffing and polish facility is also available.

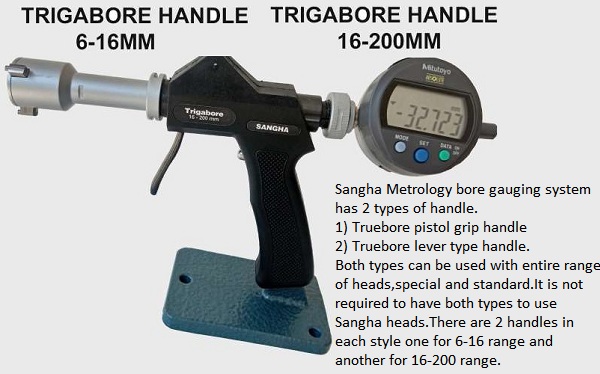

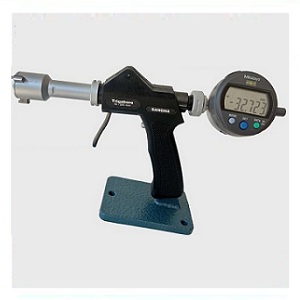

3 Point Triga Bore Gauge

3 Point Triga Bore Gauge is ideal for solving internal diameter measurement problems on the shop floor and inspection areas.The system is available in large measuring range for specific application.
Features of Triga Bore are:
Triga Bore heads have large measuring range.
Extensions available for increased gauging depth
Repeatability 0.002mm to 0.0001mm
High degree accuracy can be achieved without for need special skill
Ideally suited to simple or integrated measurement application
Ergonomically designed handle offer single handed operation.

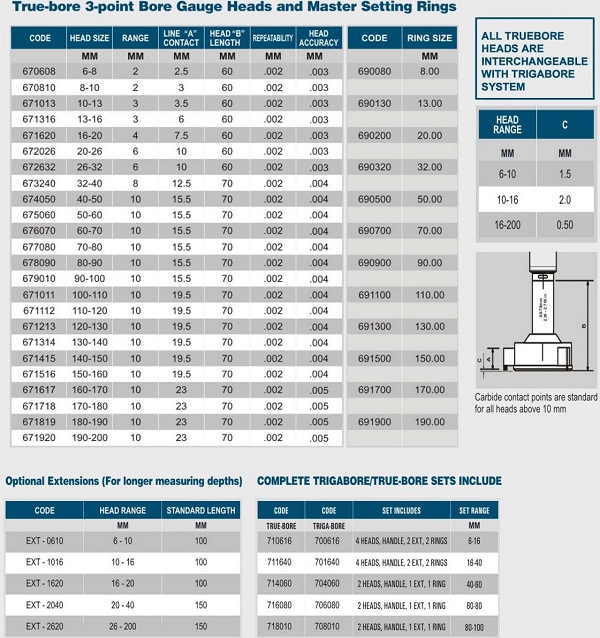

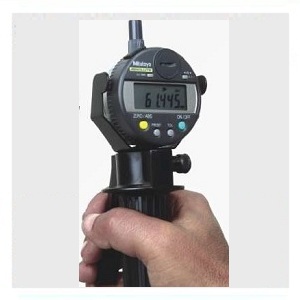

3 Point True Bore Gauge

3 Point True Bore Gauge is a lever style bore gauge handles which can be used with entire range of True Bore Gauge 3 Point bore gauge heads. Ideal for use in vertical gauging application.
Main Features:
True bore heads have large measuring range and are supplied with fixed anvils eliminating operator error.
24 heads cover 6-200mm.
Unique system design requires only two handles to accomodate the entire range of 24heads.
Extension available for increased gauging depth.
Repeatability 0.002mm or 0.001mm
High degree of accuracy can be achived without the need for special skills.
Ideal suited to simple or intergrated measurement.

Internal Bore Gauge

We are manufacturer and supply world class Internal Bore Gauge. Trigabore is the result of over 30 years of design and manufacture of 3 point bore gauging systems. Trigabore gauge ideal for solving internal diameter measurement problems on the shop floor and inspection areas, the system is available in a large measuring range for specific application. Mechanical and electronic dial gauge as well as linear probes can be specified. Ergonomic,self centering system provides for easy and accurate measurement of internal diameters. Trigabore head system suitable for mm/inch measurements.
Main Features: Triga bore heads have a large measuring range and are supplied with fixed anvils eliminating operator error.
24 heads cover 6-200mm range
Unique system design requires only two handles to accomodate the entire range of 24 heads
Extension available for increased gauging depths
Repeatability 0.002mm or 0.0001"
High degree of accuracy can be achived without the need for special skills
Ideally suited to simple or integrated measurement applications
Ergonomically designed handle offer single handed opration.
Accurate calibration and linearity checks can also be made using Sangha Metrology calibrated ring gauges.
True cal system for 3 point bore gauge calibration can also be used.

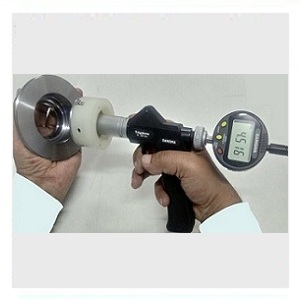

Digital Bore Gauge

We are manufacturer and supply world class Digital Bore Gauge. Trigabore is the result of over 30 years of design and manufacture of 3 point bore gauging systems. Trigabore gauge ideal for solving internal diameter measurement problems on the shop floor and inspection areas, the system is available in a large measuring range for specific application. Mechanical and electronic dial gauge as well as linear probes can be specified. Ergonomic,self centering system provides for easy and accurate measurement of internal diameters. Trigabore head system suitable for mm/inch measurements.
Main Features:
Triga bore heads have a large measuring range and are supplied with fixed anvils eliminating operator error.
24 heads cover 6-200mm range
Unique system design requires only two handles to accomodate the entire range of 24 heads
Extension available for increased gauging depths
Repeatability 0.002mm or 0.0001"
High degree of accuracy can be achived without the need for special skills
Ideally suited to simple or integrated measurement applications
Ergonomically designed handle offer single handed opration.
Accurate calibration and linearity checks can also be made using Sangha Metrology calibrated ring gauges.
True cal system for 3 point bore gauge calibration can also be used.

Bore Gauge

We are manufacturer and supplier of Measurement Bore Gauge. Ergonomic,self centering system provides for easy and accurate measurement of internal diameters. True bore head system suitable for mm/inch measurements.
Main Features:
True bore heads have a large measuring range and are supplied with fixed anvils eliminating operator error..
24 heads cover 6-200mm range
Unique system design requires only two handles to accommodate the entire range of 24 heads
Extension available for increased gauging depths
Repeatability 0.002mm or 0.0001"
High degree of accuracy can be achieved without the need for special skills
Ideally suited to simple or integrated measurement applications
Ergonomically designed handle offer single handed operation.
Accurate calibration and linearity checks can also be made using Sangha Meteorology calibrated ring gauges.
True cal system for 3 point bore gauge calibration can also be used.
